Plugs available

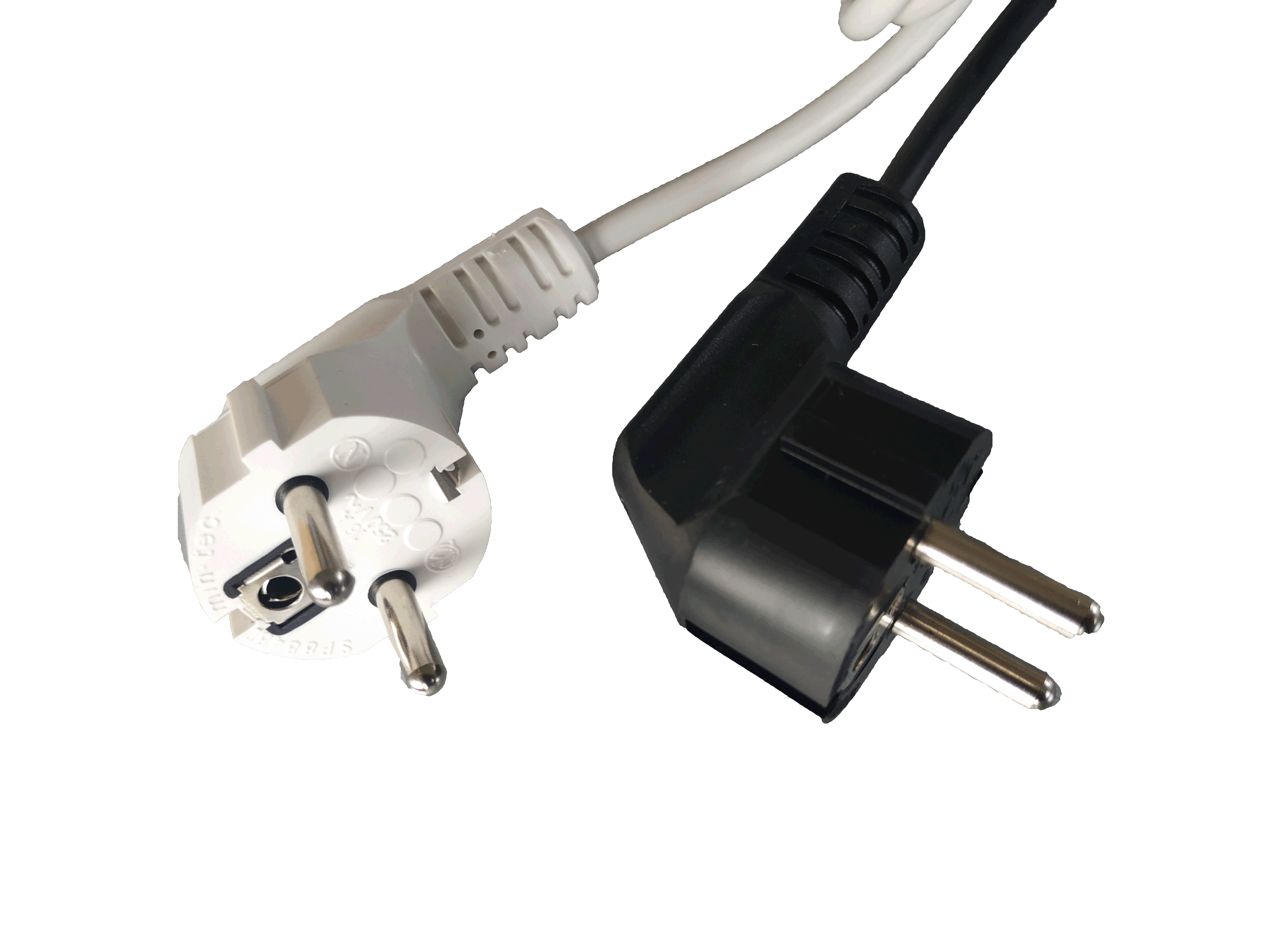

European

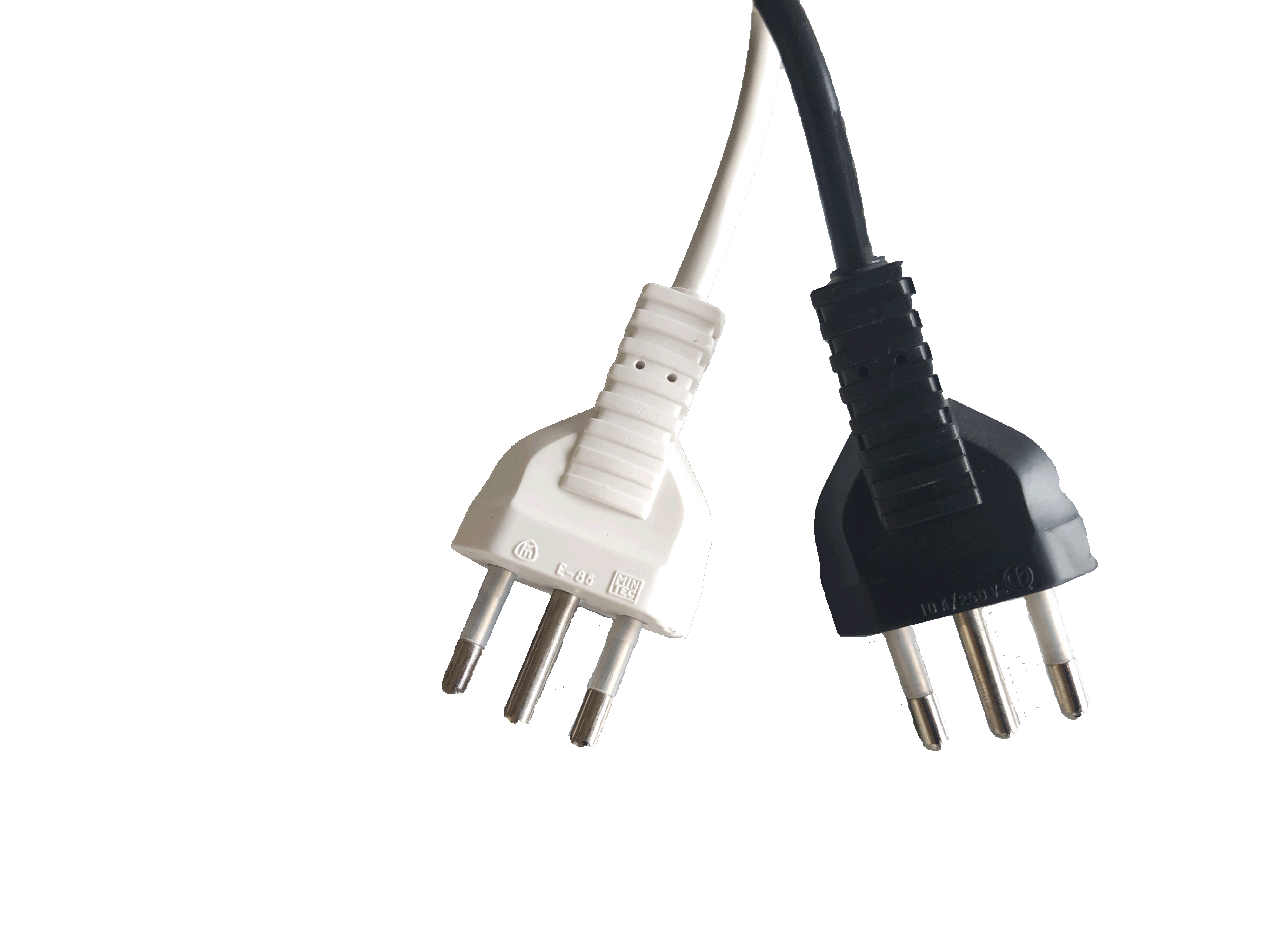

Italian

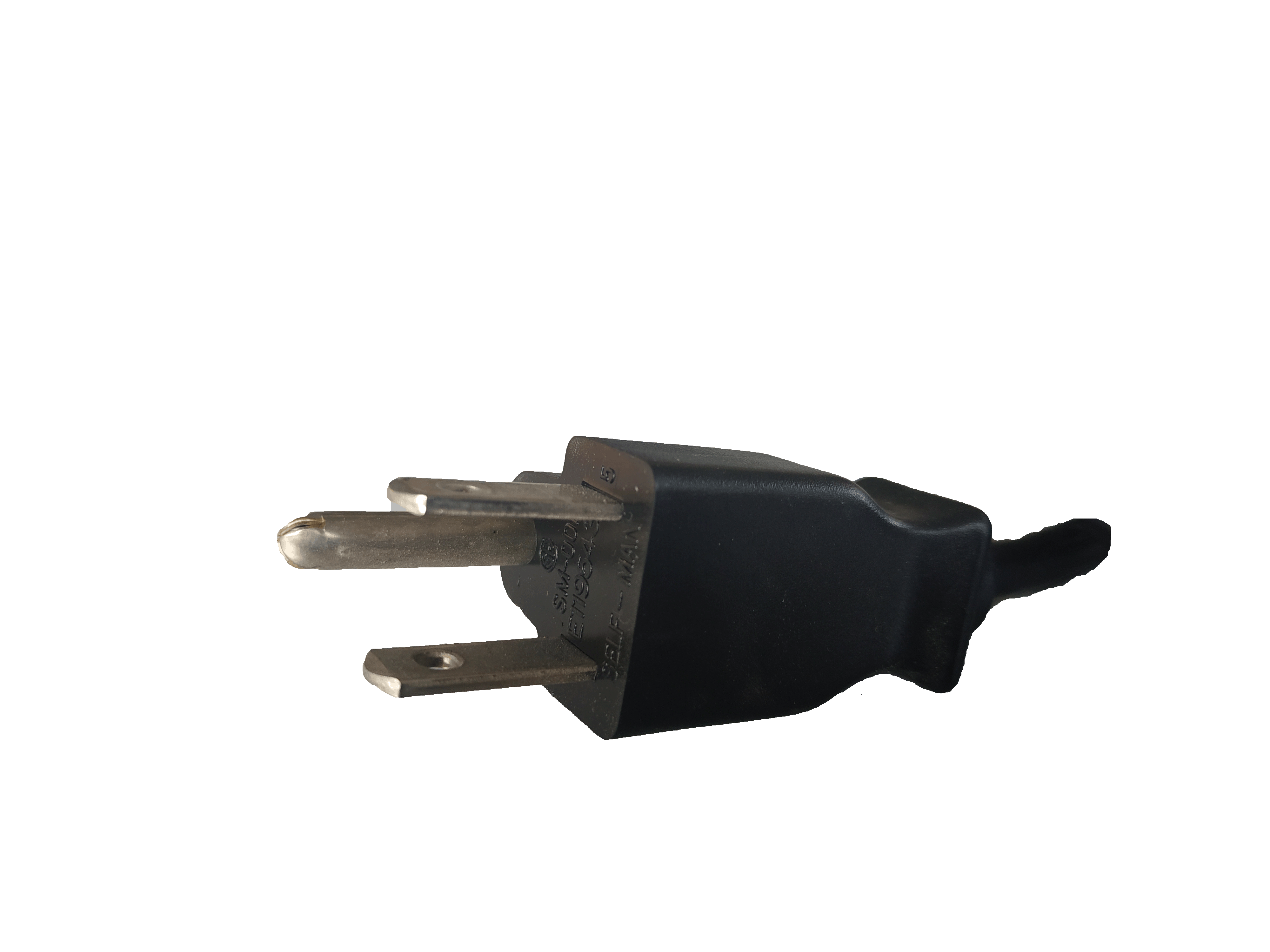

American

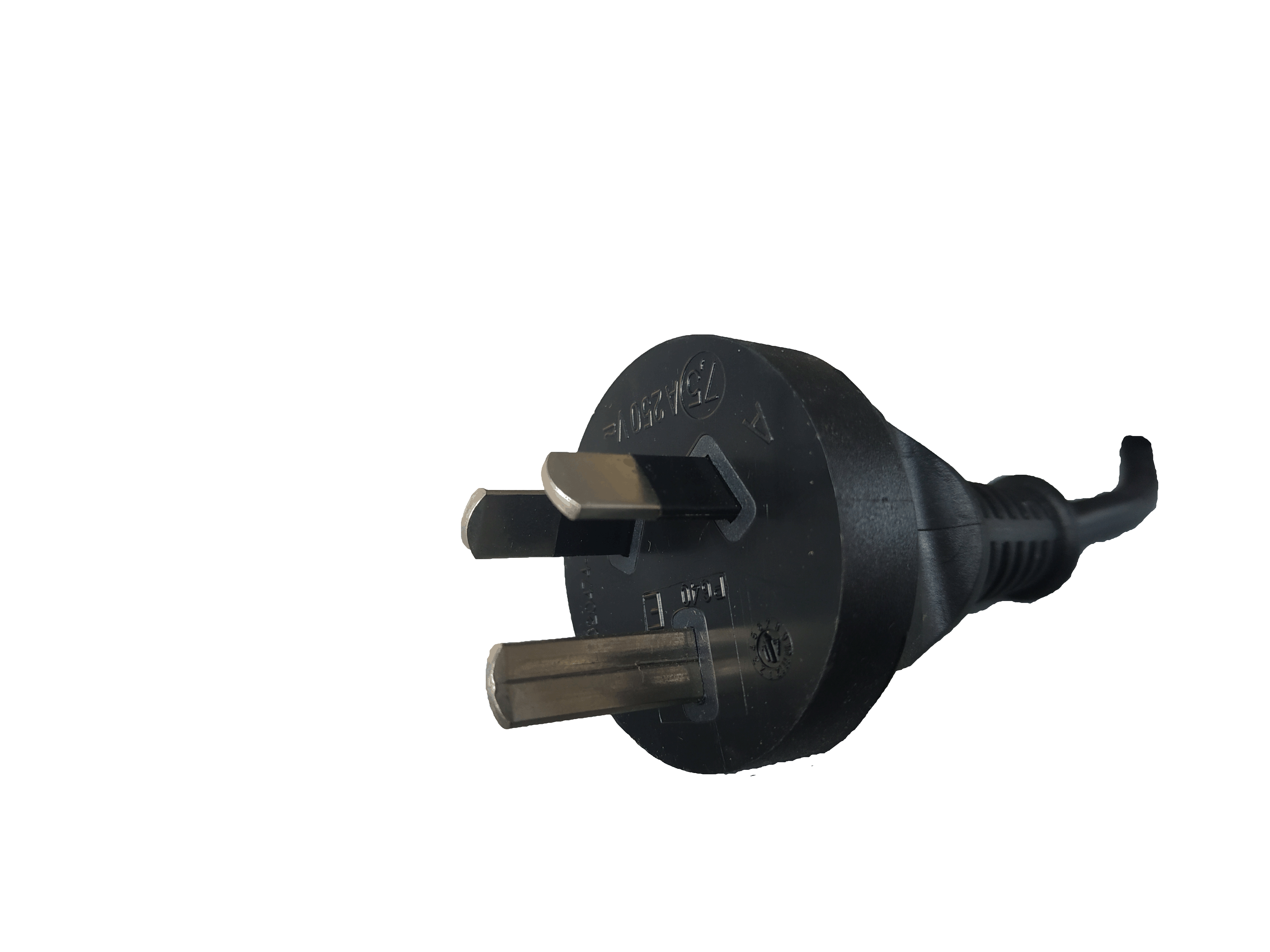

Australian

English

SILICONE CABLES

Roll 100 mt.

Volt

Clear

White

Grey

Black

Ø 4,7 mm. - Cu mm2 1

Ø 6,3 mm. - Cu mm2 1

Ø 7,3 mm. - Cu mm2 1

Max Temp. +180°C

6.000 V

12.000 V

15.000 V

SIL47W

SIL63T

SIL63W

SIL73W

SIL47G

SIL63B

SIL73B

SIL47B

SIL63G

SIL73G

Silicone cable EN 50143 standard Type B

Roll 100 mt.

Volt

White

Grey

Type B
Ø 6.3 mm.
Max Temp. +180°C

Roll 100 mt.

10.000 V

SILB63W

SILB63G

Silicone Sheathed EN 50143 standard Type C2

Roll 100 mt.

Volt

White

Type C2
Ø 8.3 mm.

Halogen free

Max Temp. +90°C

5.000/ 10.000 V

SILPVC8C2

Roll 100 mt.

PVC CABLES

Volt

Clear

Yellow

Double layer flexible ground wire
Ø 9.7 mm.
Cu mm2 1,5
Max Temp. +70°C

5.000/ 10.000 V

PVC Clear
Ø 4.6 mm.
Cu mm2 1
Max Temp. +60°C

PVC Clear
Ø 6.3 mm.
Cu mm2 1
Max Temp. +60°C

6.000 V

12.000 V

PVC97Y

PVC46T

PVC63T

PVC Cable EN 50143 standard Type F

Roll 100 mt.

Volt

Yellow

Double layer drainwire
Ø 9 mm.
Cu 1,5 mm2.
Max Temp. +70°C
Tinned copper

5.000/ 10.000 V

Double layer (No drainwire)
Ø 9 mm.
Cu 1,5 mm2.
Max Temp. +70°C
Tinned copper

5.000/ 10.000 V

PVC9DY

PVC9Y

PVC cable EN 50143 standard Type G

Roll 100 mt.

Volt

White

Black

Yellow

Grey

Type G

Ø 6.5 mm.

Max Temp. +70°C

5.000/ 10.000 V

PVCG65W

PVCG65B

PVCG65Y

PVCG65G

Roll 100 mt.

PET+PVC cable EN 50143 standard Type K

Volt

White

Black

Grey

Type K

Ø 4.5 mm.

Max Temp. +70°C

(roll 200 mt)

5.000/ 10.000 V

PVCK45W

PVCK45B

PVCK45G
